LYNX® Temperature Control System
Your Link to Process Perfection and Peace of Mind

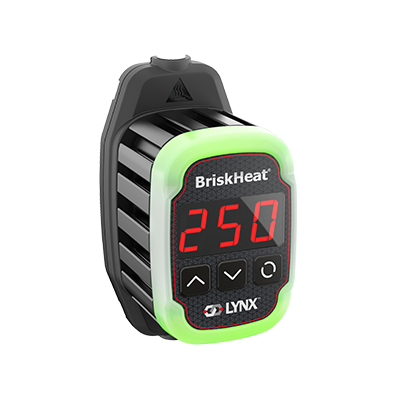

The LYNX® Temperature Control System is a state-of-the-art PID (proportional inegral derivitve) temperature control system comprised of up to 1,024 zones. Each heater (zone) can be individually controlled and monitored. This provides users the ability to track each unit's performance. Monitor each zone from the full-color touchscreen, the highly visible indicator lighgts, a remote system, or via email alerts. Extraordinary features and benefits coupled with incredible versatility meet your process expectations with this unique temperature control system.

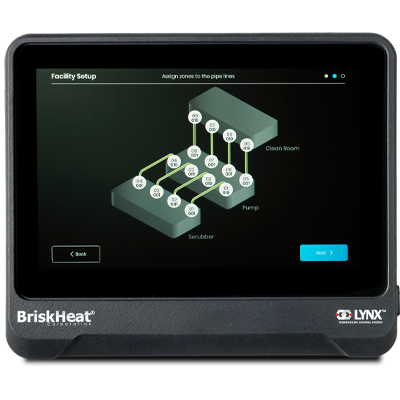

LYNX® Operator Interface (OI)

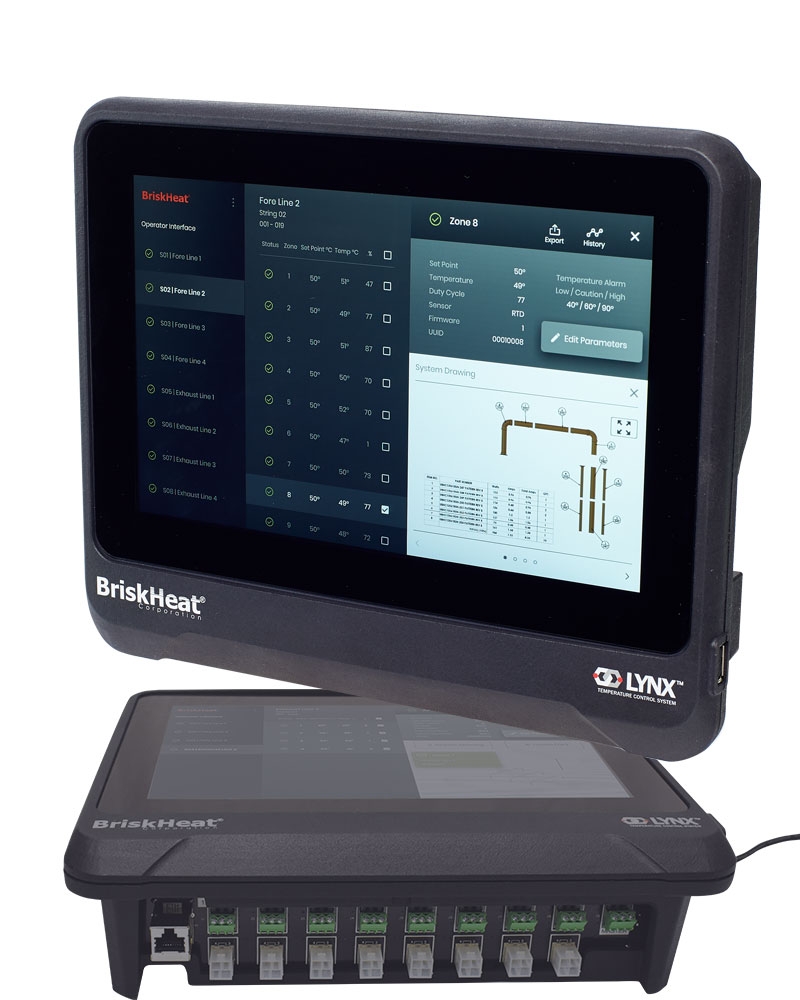

Operation of a complete LYNX® Temperature Control System typically includes an operator interface capable of controlling up to 8 strings of heaters (1024 total zones). Operator interfaces are available with different power plugs and can be used at any voltage between 100 to 277 VAC, 50/60 Hz.
LYNX®
The LYNX® Temperature Control System is a state-of-the-art PID (proportional integral derivative) temperature control system comprised of up to 1,024 zones. Each heater (zone) can be individually controlled and monitored. This provides users the ability to track each unit’s performance as well as to monitor each zone from the full-color touchscreen, the highly visible indicator lights, a remote system, or via email alerts.
LYNX®

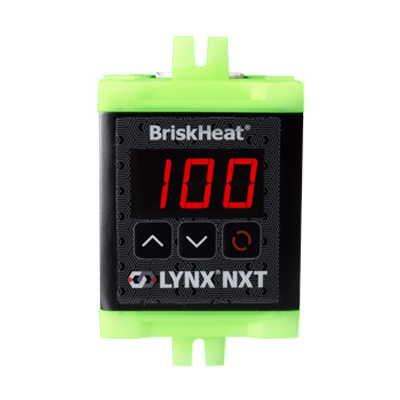

The LYNX NXT® Temperature Control System is an advanced PID (proportional integral derivitave) temperatue control system that expands on the design of the original LYNX®. This improved temperatue control system can be comprised of up to 1,024 zones capable of being controlled individually or centrally utilizing LYNX® Operator Interface. The LYNX® and LYNX NXT® can both be used in the same string of heaters with LYNX® NXT Adapter Cables.
LYNX NXT® Products
LYNX® Products
Your Link to Process Perfection
and Peace of Mind

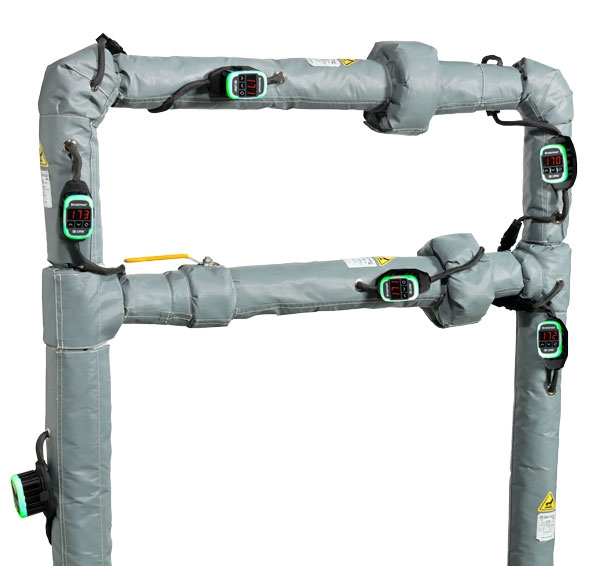

The LYNX® Temperature Control System is a state-of-the-art PID (proportional integral derivative) temperature control system comprised of up to 1,024 zones. Each heater (zone) can be individually controlled and monitored. This provides users the ability to track each unit’s performance. Monitor each zone from the full-color touchscreen, the highly visible indicator lights, a remote system, or via email alerts. Extraordinary features and benefits coupled with incredible versatility meet your process expectations with this unique temperature control system.
- 1:1 PID control to EACH heater
- Can be used independently or as a system of up to 1,024 zones of control
- Easy to use Operator Interface (OI) and Temperature Control Modules
- Can connect to CMS via Modbus
- Sends email alerts
- Idle mode option saves energy and time during maintenance
"The Lynx System was a great answer to a difficult application. It is easy to install, and use, and the support BriskHeat provided was excellent."
Jon G - Physical Electronics

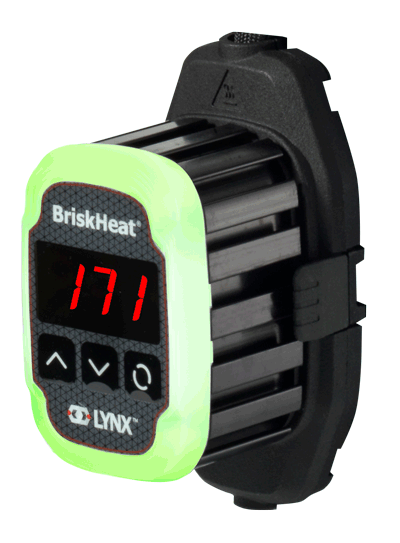

PID TEMPERATURE CONTROL SYSTEM
1-to-1 control for each heater promotes uniformity
Fully functional PID controller in a small, compact design to fit in tight spaces
